PyXis M12 vibration sensor connection selection is not just a connector preference. It affects cable replacement, enclosure interfaces, strain relief, washdown integrity, commissioning work and the spares strategy for a machine or plant. The current controlled PyXis 222x Series datasheet lists two connection options: an A-coded M12 5-pin male connector or a high-flex integral cable.
This guide explains how to choose between them without assuming a pinout, ingress performance or cable specification that has not been confirmed for the ordered sensor variant.
What the PyXis connection options are
PyXis is a smart 3-axis vibration and temperature sensor with a 4.75–28 VDC input and two-wire, half-duplex RS-485 communications using a Modbus RTU slave model. According to controlled datasheet TTN-DS-2026-002 Rev 08, the physical connection can be supplied as:
- A-coded M12 5-pin male connector: a detachable industrial connection that allows the field cable to be replaced separately.
- High-flex integral cable: a permanently attached cable option that removes one detachable interface at the sensor.
The datasheet does not make either option universally better. The correct choice depends on how the sensor will be installed, maintained and exposed to vibration, moisture, cleaning, cable motion and service activity.
PyXis M12 vibration sensor connection: when M12 is the practical choice
An M12 connection is often attractive where technicians need to remove the sensor without pulling a complete cable run. A pre-assembled field cable can also support modular machine construction, standardised spares and faster component replacement.
Advantages to evaluate
- Serviceability: the cable and sensor can be replaced independently.
- Machine modularity: a detachable interface can simplify assembly, shipping and field installation.
- Spare-parts control: standard cable lengths can be stocked when the approved mating cable is defined.
- Inspection: the coupling, seal and cable condition can be checked during planned maintenance.
Engineering controls still required
A detachable connector introduces a mating interface. The coupling must be fully engaged, clean and compatible with the environment. Cable strain must not be transferred into the sensor body or connector. The controlled datasheet states that the IP67/IP68 sealed construction is subject to the connector, cable and installation method; the sensor body alone does not guarantee the ingress performance of the completed installation.

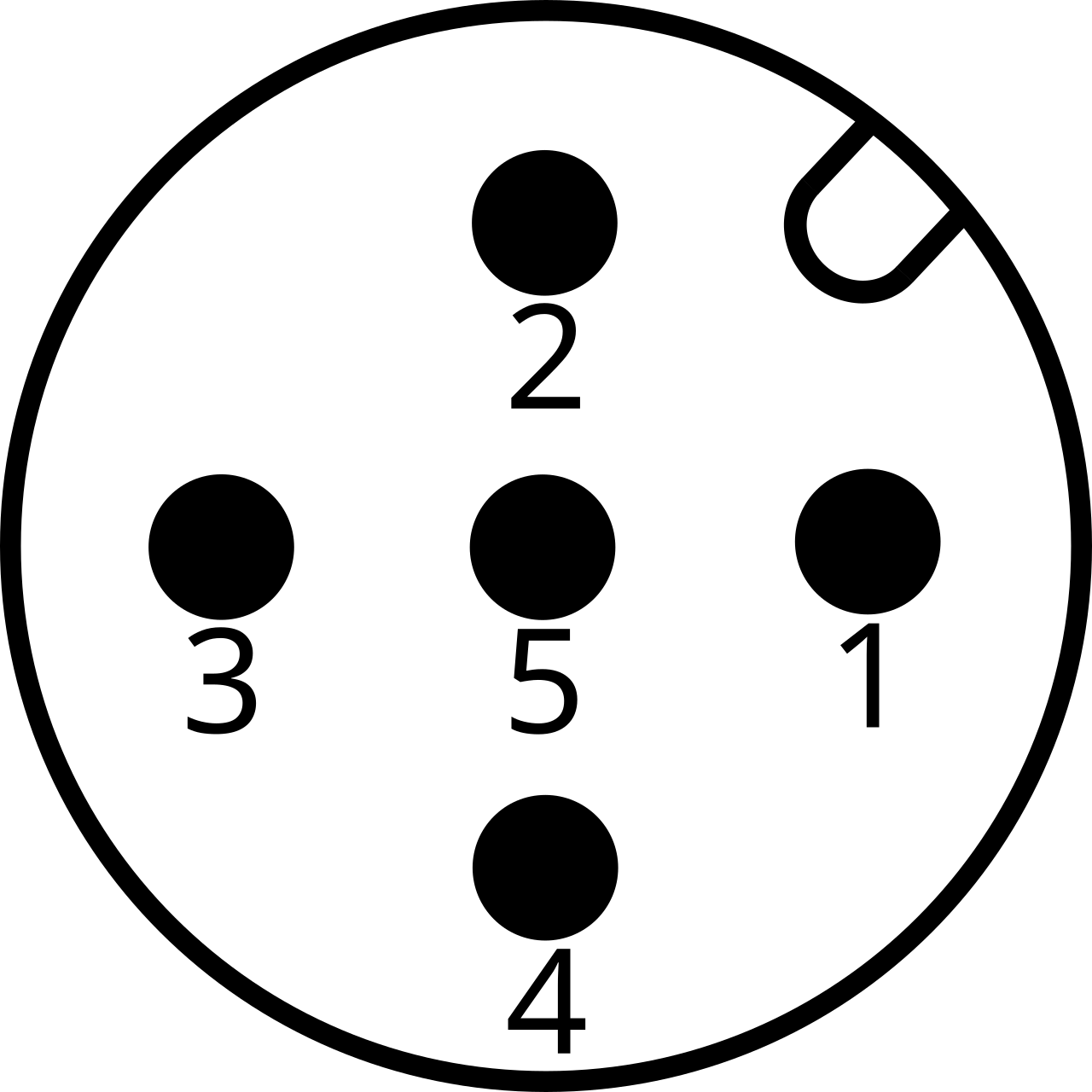

The accompanying visual is a generic A-coded 5-pin connector-face reference. It is not the PyXis pin assignment and must not be used as a wiring drawing.
When the integral-cable option may be preferable
An integral cable removes the detachable field interface at the sensor. That can be useful where the sensor is intended to remain in place, connector access is poor or the project wants fewer mating interfaces near the machine.
Questions to resolve before selection
- Can the full cable be routed and replaced if it becomes damaged?
- Is the ordered cable length suitable without hidden joints or excessive coiling?
- Will the jacket tolerate the plant’s oils, chemicals, temperature and cleaning regime?
- Is the bend radius and flex life suitable for the actual routing?
- Can strain relief prevent movement at the cable entry?
“High-flex” does not mean that any routing, continuous-flex duty or chemical exposure is automatically acceptable. Confirm the released cable specification for the ordered variant and assess the real installation environment.
Electrical and RS-485 interface considerations
Connection style does not change the need for a controlled electrical design. Use the released pin-assignment or integral-cable drawing for the exact hardware revision. Do not copy a pinout from another sensor, a generic M12 diagram or an earlier drawing.
Power checks
- Provide 4.75–28 VDC at the sensor under the worst expected cable voltage drop.
- Verify polarity before energising.
- Include the cable run, connector contacts and any junctions in the voltage-drop assessment.
- Keep the final circuit within the applicable power, protection and grounding design.
RS-485 checks
- Use a twisted pair for the A/B data conductors and maintain polarity throughout the trunk.
- Follow a daisy-chain topology with short stubs; avoid an improvised star.
- Terminate the two physical ends of the RS-485 trunk according to the network design.
- Define the common and shield strategy instead of creating undocumented earth paths.
- Separate the communication cable from high-current switching conductors where practical.
PyXis supports slave addresses 1–247, automatic baud detection or fixed 9600, 19200, 38400 and 115200 bps, the 8E1, 8O1, 8N1 and 8N2 serial formats, and a 0–50 ms response delay. Record the commissioned values with the asset documentation.
Two practical selection examples
OEM machine with plug-in subassemblies
An OEM builds machines in modules and expects sensors to be replaced without opening long cable routes. An M12 option may reduce service time, provided the approved mating cable, coupling torque or engagement method, sealing and strain relief are controlled in the build documentation.
Permanent sensor in a difficult-access location
A sensor is installed where a detachable connector would be exposed to heavy contamination and rarely needs removal. An integral cable may remove one field interface, but the design must still provide accessible routing, jacket compatibility, correct bend control and a realistic replacement plan.
Commissioning checklist before handover
- Confirm the ordered PyXis variant and connection type against the purchase record.
- Use the released connector pin-assignment or integral-cable drawing that matches the hardware revision.
- Inspect connector seating or the integral cable entry, routing and strain relief.
- Verify supply polarity and voltage at the sensor.
- Confirm A/B polarity, trunk topology, termination, common and shield arrangement.
- Read the device identity and record the hardware, firmware and serial information.
- Apply the intended slave ID and serial format, then test communications at normal network loading.
- Document the connection, cable type, route and environmental controls in the asset record.
Important limitations
The connector option does not define the complete installation rating. Final ingress performance depends on the full connector or cable assembly, sealing, mating and installation practice. Chemical compatibility, washdown exposure, cable jacket, temperature cycling and mechanical routing must be checked for the site. PyXis is not a safety device unless the complete safety function is separately assessed and validated.
For dimensional details, pin assignment, production calibration, ingress declaration and firmware/register compatibility, use the released documents for the ordered hardware—not an article, a generic connector image or a filename.
Who should consider each option?
- Machine builders: compare modular assembly and service replacement against connector exposure.
- System integrators: define cable, RS-485 and grounding controls before installation.
- Maintenance teams: assess access, spares, inspection and replacement procedures.
- Purchasing teams: specify the connection option, approved cable assembly and matching revision documents in the order.
Review the PyXis product overview, use the product selector, explore condition-monitoring solutions and check the technical resources. For the mechanical side of the installation, also see vibration sensor mounting and axis alignment.
Need help choosing the connection? Send the machine type, cable-run length, environment, access constraints, controller platform and preferred maintenance method for an engineering review.
Technical basis: PyXis 222x Series Smart 3-Axis Vibration Sensor datasheet TTN-DS-2026-002, Rev 08, issued 22 July 2026. Confirm the current hardware, firmware, connector/cable drawing and Modbus register-map revision before design freeze or commissioning.
Featured visual: generic IEC 61076 M12 A-coded 5-pin connector diagram by Malvineous, via Wikimedia Commons, licensed under CC BY-SA 4.0. Unmodified apart from Wikimedia’s PNG rendering. It is not a PyXis wiring diagram.
